Powershell send additional table information in email body

PowerShell Help
1

It is a script that monitors some IPs on the network and after detecting some consecutive communication failures, an email is sent. The email is correctly sending the IPs with communication problems, but I need to include in the email a list or table with the identification of each IP. Can anybody help me? What change should I make to this part of the script?

I tested some changes but I couldn’t correctly format the table with IPs identification.

Part of the script:

$Data = $Status.Values | Where { $_.'Failed Pings' -eq 5 -or ( ($_.'Failed Pings' -ne 0 -and -not ($_.'Failed Pings' % $Alert))) }
If ($Data)
{ $HTML = $Data | Sort Destination,From | ConvertTo-Html -Head $Header -PreContent "<p>O script de monitoracao detectou falhas de conexao<br></p>" | Out-String

$Ref=
"

REFERENCIAS:

IP Identificacao

172.29.186.100 Mguard EDU 172.29.186.101 EDU OP09 PLC 172.29.186.102 EDU OP09 CP343 172.29.186.108 EDU OP10 PLC 172.29.186.115 EDU OP20 PLC 172.29.186.122 EDU OP30 PLC 172.29.186.128 Test1 172.29.186.129 Test2"

$Body= "$HTML
$Ref "

    Send-MailMessage -To $To -From $From -Subject "Shop Floor Tier 1 - Detectado Problemas de Conexao" -Body $Body -BodyAsHtml -SmtpServer $SMTPServer
    Write-Host "Alert Email Sent!`n"
    Start-Sleep -Seconds 1
}

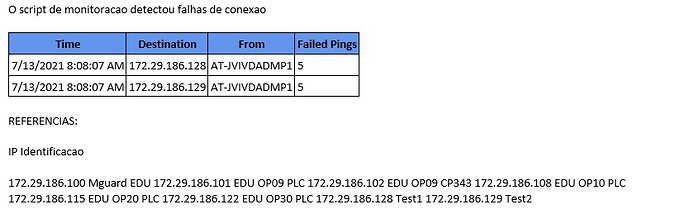

Email received:

Email_script
Email_script835×259 37.8 KB

3

Hello @FredRocha,
If I understood you correctly, you need to add a table/list basically a legend to be able to see the computer names that cannot be reached.
You can try something like this:

$Ref="
<b>REFERENCIAS</b>
<table>
<tr>
<th>IP Address</th>
<th>Computer Name  </th>
</tr>
<tr>
<td>172.29.186.100 </td>
<td> Mguard EDU</td>
</tr>
<tr>
<td>172.29.186.101 </td>
<td>EDU OP09 PLC </td>
</tr>
<tr>
<td>172.29.186.102 </td>
<td> EDU OP09 CP343</td>
</tr>
<tr>
<td>172.29.186.108 </td>
<td> EDU OP10 PLC</td>
</tr>
<tr>
<td>172.29.186.115 </td>
<td> EDU OP20 PLC</td>
</tr>
<tr>
<td> 172.29.186.122</td>
<td> EDU OP30 PLC</td>
</tr>
<tr>
<td> 172.29.186.128</td>
<td> Test1</td>
</tr>
<tr>
<td> 172.29.186.129</td>
<td> Test2</td>
</tr>
</table>
"

Hope that helps.

4

I believe he wants a way to resolve the IP in the table to a hostname and include that in the table as well, IE add another column/TH for that.

5

@tonyd ,
That’s totally makes sense and it was my first thought but based on the code provided it looks like references section is like hardcoded dictionary slapped at the end of email.

6

Understood. It would get a bit ugly resolving the IP and getting that into the table. Wish I had time to figure it out, but I dont.
